51202V/HR22Q2轴承
我们不仅提供SKF 51202V/HR22Q2轴承，还提供SKF品牌的其他品牌产品，以及SKF 51202V/HR22Q2轴承的替换型号，万千种型号，任您选择。
型号：51202V/HR22Q2
品牌：SKF
内径：15
外径：32
厚度：12
系列：聚合物球轴承,推力球轴承, PP/PP/glass/PP
【
手机版 51202V/HR22Q2轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

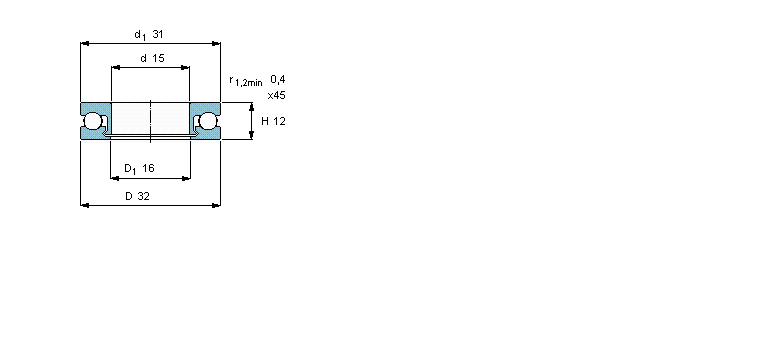

SKF 51202V/HR22Q2尺寸图纸
51202V/HR22Q2轴承基本参数
| 聚合物球轴承,推力球轴承, PP/PP/glass/PP | ||||||||
|
||||||||
| 主要数据尺寸 | 负荷能力 | 额定速度 | 体积 | 型号 | ||||
| d | D | B | 动态 1) | 静态 2) | 最大 3) | 最大 | - | |
| 1) above 50 °C and/or above 20 % | 3) Consider load carrying | |||||||
| of max speed rating consider | capability reduction according | |||||||
| reduction according to diagram | to diagram | |||||||
| 2) above 50 °C consider | ||||||||
| reduction according to diagram | ||||||||
|
|
||||||||
| mm | kN | r/min | kg | - | ||||
|
|
||||||||
| 15 | 32 | 12 | 0,57 | 0,46 | 460 | 0,0088 | 51202 V/HR22Q2 | |
