FBSA210A/QBC轴承
鼎力晟业是SKF进口轴承代理商，不仅为工业配套用户提供SKF FBSA210A/QBC轴承，在维修市场也提供足够的支持，是SKF轴承在国内的优质经销商之一，购买SKF FBSA210A/QBC轴承，鼎力晟业是您放心的选择。
型号：FBSA210A/QBC
品牌：SKF
内径：50
外径：128
厚度：106
系列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
【
手机版 FBSA210A/QBC轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

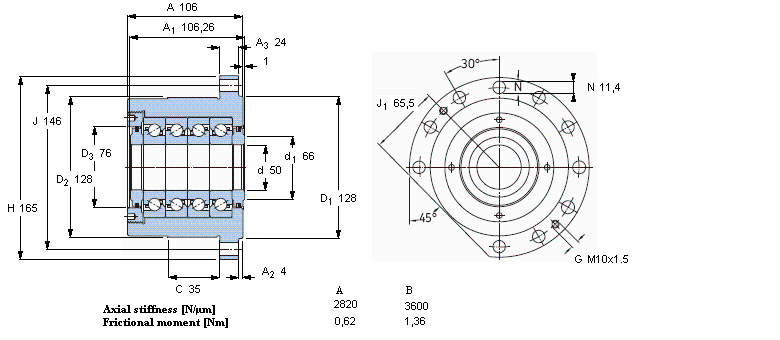

SKF FBSA210A/QBC尺寸图纸
FBSA210A/QBC轴承基本参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 128 | 106 | 75,795 | 292 | 10,8 | 3000 | 1500 | 9,3 | FBSA 210 A/ QBC | BSQU 250/1 TDT | |
