FBSA210/DB轴承
SKF进口轴承代理鼎力晟业为用户提供高品质的FBSA210/DB轴承，无论是工业配套还是维修市场，用户都可以在这里找到货期最短的SKF FBSA210/DB轴承，确保您的不间断生产。
型号：FBSA210/DB
品牌：SKF
内径：50
外径：124
厚度：66
系列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
【
手机版 FBSA210/DB轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

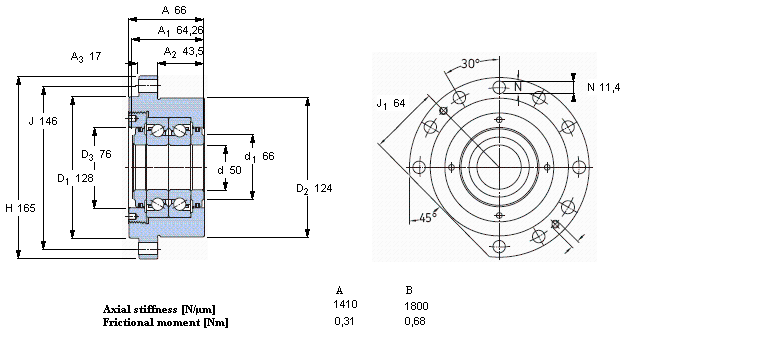

SKF FBSA210/DB尺寸图纸
FBSA210/DB轴承基本参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 124 | 66 | 46,5 | 146 | 5,4 | 4800 | 2400 | 5,7 | FBSA 210/ DB | BSDU 250 DD | |
角接触推力球轴承 for screw drives, cartridge units with flanged housing
- 品牌
- 型号
- 内径
- 外径
- 厚度
- 系列
- SKF
- FBSA204/DB轴承
- 20
- 60
- 47
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/QBC轴承
- 20
- 60
- 77
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/DF轴承
- 20
- 60
- 47
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/DB轴承
- 25
- 80
- 52
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/QFC轴承
- 20
- 60
- 77
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/QBC轴承
- 25
- 80
- 82
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/DF轴承
- 25
- 80
- 52
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA206/DB轴承
- 30
- 80
- 52
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
相同内径*外径*厚度—50*124*66
- 品牌
- 型号
- 内径
- 外径
- 厚度
- 系列
- SKF
- FBSA210/DB轴承
- 50
- 124
- 66
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA210/DF轴承
- 50
- 124
- 66
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
