BEAM025075-2RS轴承
SKF BEAM025075-2RS轴承是鼎力晟业长期代理的产品，鼎力晟业与SKF公司具有长期的BEAM025075-2RS轴承采购计划，可以为国内用户提供足够数量的SKF BEAM025075-2RS轴承，让您的工厂无忧运转。
型号：BEAM025075-2RS
品牌：SKF
内径：25
外径：75
厚度：28
系列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
【
手机版 BEAM025075-2RS轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

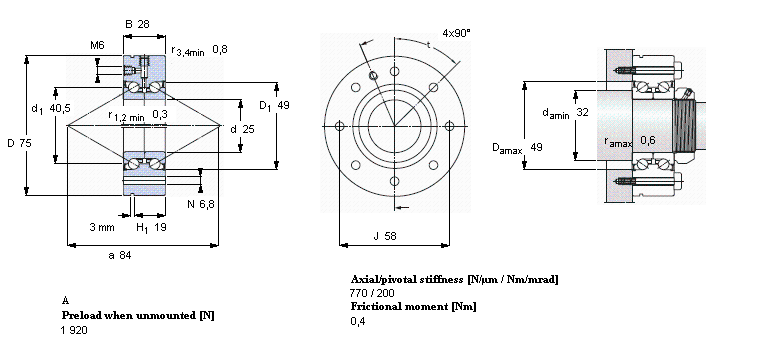

SKF BEAM025075-2RS尺寸图纸
BEAM025075-2RS轴承基本参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 25 | 75 | 28 | 27,6 | 55 | 2,04 | 3400 | 0,72 | BEAM 025075-2RS | BEAM 25/75/C 7P60 | |
角接触推力球轴承 for screw drives, double direction, for bolt mounting
