BEAM020068-2Z轴承
鼎力晟业是SKF进口轴承代理商，不仅为工业配套用户提供SKF BEAM020068-2Z轴承，在维修市场也提供足够的支持，是SKF轴承在国内的优质经销商之一，购买SKF BEAM020068-2Z轴承，鼎力晟业是您放心的选择。
型号：BEAM020068-2Z
品牌：SKF
内径：20
外径：68
厚度：28
系列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
【
手机版 BEAM020068-2Z轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

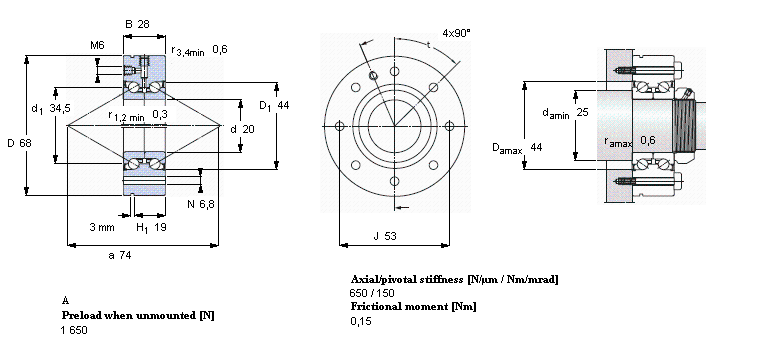

SKF BEAM020068-2Z尺寸图纸
BEAM020068-2Z轴承基本参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 20 | 68 | 28 | 26 | 46,5 | 1,73 | 6000 | 0,61 | BEAM 020068-2Z | BEAM 20/68/Z 7P60 | |
角接触推力球轴承 for screw drives, double direction, for bolt mounting
