FBSA208/QFC轴承
鼎力晟业是SKF进口轴承代理，销售SKF FBSA208/QFC轴承，不仅具备价格优势，而且在供货及时性、供货能力方面具有比较优势，能在最短的时间内为用户提供原装进口的SKF FBSA208/QFC轴承。
型号：FBSA208/QFC
品牌：SKF
内径：40
外径：124
厚度：106
系列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
【
手机版 FBSA208/QFC轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

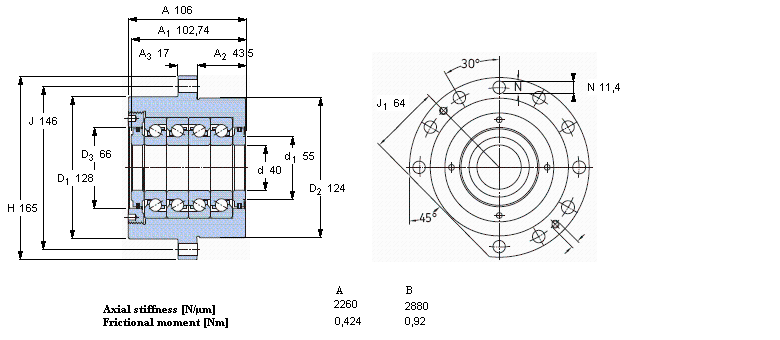

SKF FBSA208/QFC尺寸图纸
FBSA208/QFC轴承基本参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 40 | 124 | 106 | 69,275 | 224 | 8,3 | 3150 | 1575 | 9,7 | FBSA 208/ QFC | BSQU 240 TFT | |
角接触推力球轴承 for screw drives, cartridge units with flanged housing
