FBSA207/DB轴承
鼎力晟业是SKF进口轴承代理商，不仅为工业配套用户提供SKF FBSA207/DB轴承，在维修市场也提供足够的支持，是SKF轴承在国内的优质经销商之一，购买SKF FBSA207/DB轴承，鼎力晟业是您放心的选择。
型号：FBSA207/DB
品牌：SKF
内径：35
外径：90
厚度：52
系列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
【
手机版 FBSA207/DB轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

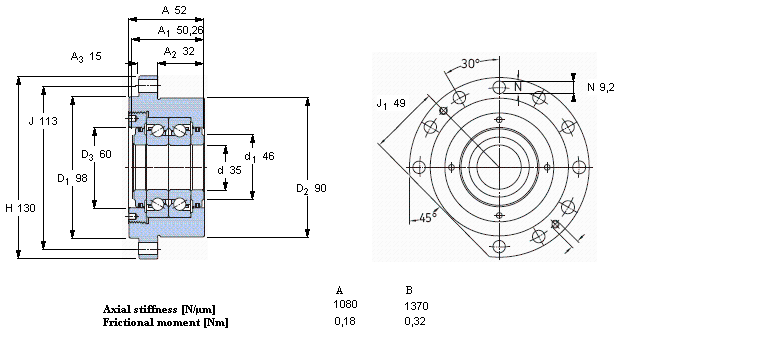

SKF FBSA207/DB尺寸图纸
FBSA207/DB轴承基本参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 35 | 90 | 52 | 36,5 | 98 | 3,65 | 5600 | 2800 | 3,2 | FBSA 207/ DB | BSDU 235 DD | |
角接触推力球轴承 for screw drives, cartridge units with flanged housing
- 品牌
- 型号
- 内径
- 外径
- 厚度
- 系列
- SKF
- FBSA204/DB轴承
- 20
- 60
- 47
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/DF轴承
- 20
- 60
- 47
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/QBC轴承
- 20
- 60
- 77
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA204/QFC轴承
- 20
- 60
- 77
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/DB轴承
- 25
- 80
- 52
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/DF轴承
- 25
- 80
- 52
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/QBC轴承
- 25
- 80
- 82
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA205/QFC轴承
- 25
- 80
- 82
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
相同内径*外径*厚度—35*90*52
- 品牌
- 型号
- 内径
- 外径
- 厚度
- 系列
- SKF
- FBSA207/DB轴承
- 35
- 90
- 52
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
- SKF
- FBSA207/DF轴承
- 35
- 90
- 52
- 角接触推力球轴承 for screw drives, cartridge units with flanged housing
