FBSA206/QBC轴承
SKF FBSA206/QBC轴承是鼎力晟业长期代理的产品，鼎力晟业与SKF公司具有长期的FBSA206/QBC轴承采购计划，可以为国内用户提供足够数量的SKF FBSA206/QBC轴承，让您的工厂无忧运转。
型号：FBSA206/QBC
品牌：SKF
内径：30
外径：80
厚度：84
系列：角接触推力球轴承 for screw drives, cartridge units with flanged housing
【
手机版 FBSA206/QBC轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

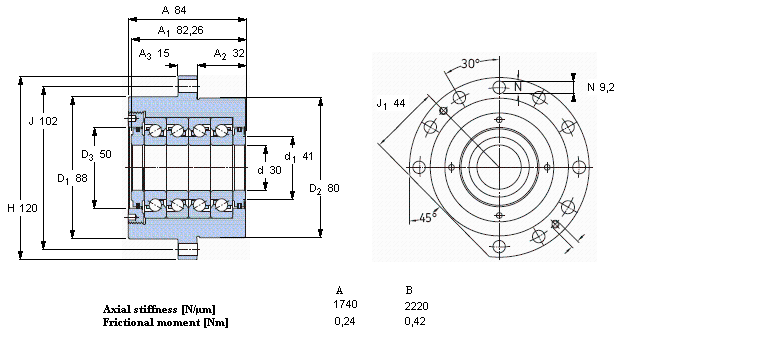

SKF FBSA206/QBC尺寸图纸
FBSA206/QBC轴承基本参数
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 30 | 80 | 84 | 46,455 | 142 | 5,3 | 4000 | 2000 | 3,5 | FBSA 206/ QBC | BSQU 230 TDT | |
