BEAM040115-2Z轴承
我们不仅提供SKF BEAM040115-2Z轴承，还提供SKF品牌的其他品牌产品，以及SKF BEAM040115-2Z轴承的替换型号，万千种型号，任您选择。
型号：BEAM040115-2Z
品牌：SKF
内径：40
外径：115
厚度：46
系列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
【
手机版 BEAM040115-2Z轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

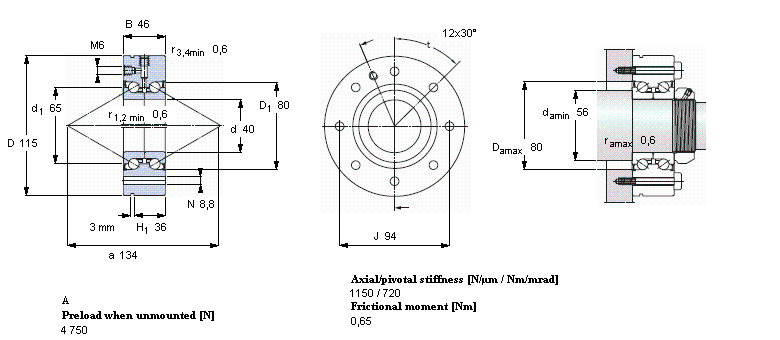

SKF BEAM040115-2Z尺寸图纸
BEAM040115-2Z轴承基本参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 40 | 115 | 46 | 71,5 | 150 | 5,5 | 3000 | 2,20 | BEAM 040115-2Z | BEAM 40/115/Z 7P60 | |
