BEAM020068-2RS/PE轴承
作为传统的进口轴承代理商，鼎力晟业以广州为基地，全方位展开与SKF公司的合作，为本地SKF BEAM020068-2RS/PE轴承提供强大的货源支持，并迅速推广到全国各地，经过多年的努力，BEAM020068-2RS/PE轴承已成为我们的主导产品之一。
型号：BEAM020068-2RS/PE
品牌：SKF
内径：20
外径：68
厚度：28
系列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
【
手机版 BEAM020068-2RS/PE轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

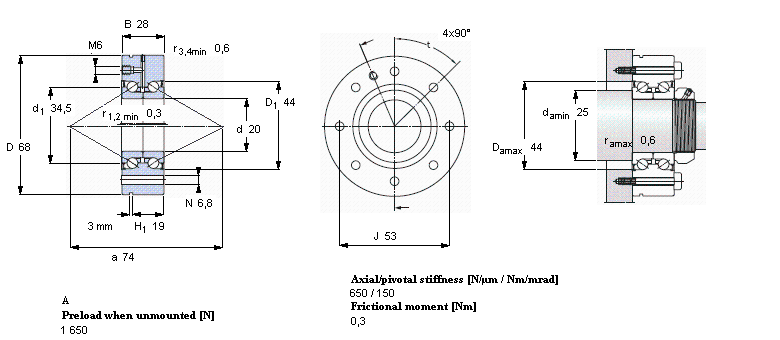

SKF BEAM020068-2RS/PE尺寸图纸
BEAM020068-2RS/PE轴承基本参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 20 | 68 | 28 | 26 | 46,5 | 1,73 | 3400 | 0,61 | BEAM 020068-2RS/PE | BEAM 20/68/C SQP60 | |
角接触推力球轴承 for screw drives, double direction, for bolt mounting
- 品牌
- 型号
- 内径
- 外径
- 厚度
- 系列
- SKF
- BEAM012055-2RS轴承
- 12
- 55
- 25
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM012055-2Z轴承
- 12
- 55
- 25
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2RS轴承
- 17
- 62
- 25
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2RS/PE轴承
- 17
- 62
- 25
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2Z轴承
- 17
- 62
- 25
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM017062-2Z/PE轴承
- 17
- 62
- 25
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS轴承
- 20
- 68
- 28
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS/PE轴承
- 20
- 68
- 28
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
相同内径*外径*厚度—20*68*28
- 品牌
- 型号
- 内径
- 外径
- 厚度
- 系列
- SKF
- BEAM020068-2RS轴承
- 20
- 68
- 28
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2RS/PE轴承
- 20
- 68
- 28
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2Z轴承
- 20
- 68
- 28
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
- SKF
- BEAM020068-2Z/PE轴承
- 20
- 68
- 28
- 角接触推力球轴承 for screw drives, double direction, for bolt mounting
- INA
- ZKLF2068-2RS轴承
- 20
- 68
- 28
- 推力角接触球轴承
- INA
- ZKLF2068-2RS-PE轴承
- 20
- 68
- 28
- 推力角接触球轴承
- INA
- ZKLF2068-2Z轴承
- 20
- 68
- 28
- 推力角接触球轴承
- FAG
- ZKLF2068-2RS轴承
- 20
- 68
- 28
- 推力角接触球轴承
- FAG
- ZKLF2068-2RS-PE轴承
- 20
- 68
- 28
- 推力角接触球轴承
- FAG
- ZKLF2068-2Z轴承
- 20
- 68
- 28
- 推力角接触球轴承
