BEAM030080-2RS轴承
SKF进口轴承代理鼎力晟业为用户提供高品质的BEAM030080-2RS轴承，无论是工业配套还是维修市场，用户都可以在这里找到货期最短的SKF BEAM030080-2RS轴承，确保您的不间断生产。
型号：BEAM030080-2RS
品牌：SKF
内径：30
外径：80
厚度：28
系列：角接触推力球轴承 for screw drives, double direction, for bolt mounting
【
手机版 BEAM030080-2RS轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

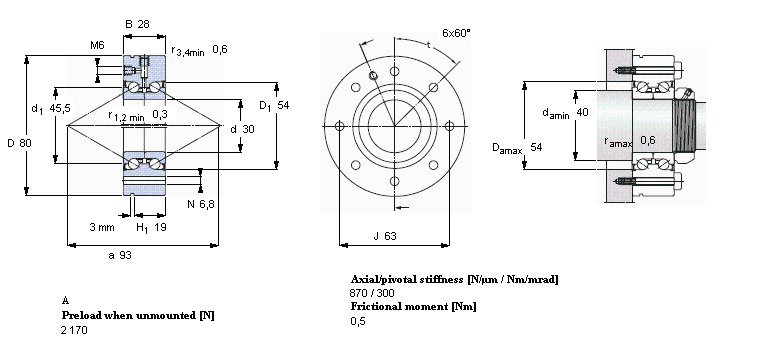

SKF BEAM030080-2RS尺寸图纸
BEAM030080-2RS轴承基本参数
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 30 | 80 | 28 | 29,1 | 64 | 2,36 | 2600 | 0,78 | BEAM 030080-2RS | BEAM 30/80/C 7P60 | |
