BSD45100CG轴承
购买SKF BSD45100CG轴承，及BSD45100CG轴承同系列产品，或者SKF公司其他产品，请联系SKF进口轴承代理-鼎力晟业，我们提供准时高效的服务。
型号：BSD45100CG
品牌：SKF
内径：45
外径：100
厚度：20
系列：角接触推力球轴承 for screw drives, single direction
【
手机版 BSD45100CG轴承
点击量
更新日期：2021/12/28
】
电话：020-36026999 传真：020-36705678 服务热线：18924187999 邮箱：sales@gzbearing.cn

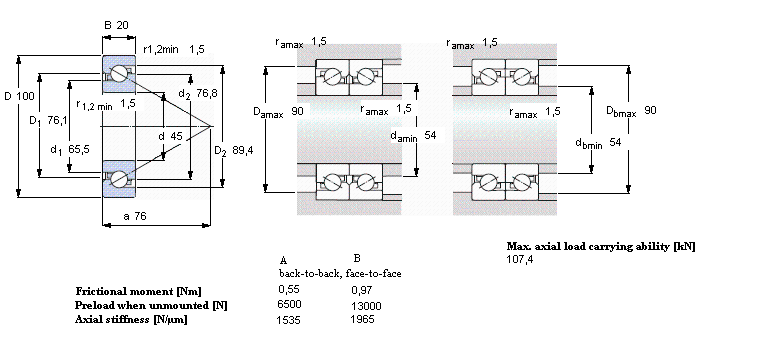

SKF BSD45100CG尺寸图纸
BSD45100CG轴承基本参数
| 角接触推力球轴承 for screw drives, single direction | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 45 | 100 | 20 | 65,5 | 183 | 6,7 | 5600 | 6700 | 0,77 | BSD 45100 CG | BS 45/100 7P62U | |
角接触推力球轴承 for screw drives, single direction
- 品牌
- 型号
- 内径
- 外径
- 厚度
- 系列
- SKF
- BSA201CG轴承
- 12
- 32
- 10
- 角接触推力球轴承 for screw drives, single direction
- SKF
- BSA202CG轴承
- 15
- 35
- 11
- 角接触推力球轴承 for screw drives, single direction
- SKF
- BSA203CG轴承
- 17
- 40
- 12
- 角接触推力球轴承 for screw drives, single direction
- SKF
- BSA204CG轴承
- 20
- 47
- 14
- 角接触推力球轴承 for screw drives, single direction
- SKF
- BSD2047CG轴承
- 20
- 47
- 15
- 角接触推力球轴承 for screw drives, single direction
- SKF
- BSA205CG轴承
- 25
- 52
- 15
- 角接触推力球轴承 for screw drives, single direction
- SKF
- BSD2562CG轴承
- 25
- 62
- 15
- 角接触推力球轴承 for screw drives, single direction
- SKF
- BSA305CG轴承
- 25
- 62
- 17
- 角接触推力球轴承 for screw drives, single direction
相同内径*外径*厚度—45*100*20
- 品牌
- 型号
- 内径
- 外径
- 厚度
- 系列
- SKF
- BSD45100CG轴承
- 45
- 100
- 20
- 角接触推力球轴承 for screw drives, single direction
- NSK
- 45TAC100B轴承
- 45
- 100
- 20
- 滚珠丝杠支撑轴承
- INA
- BSB045100-T轴承
- 45
- 100
- 20
- 推力角接触球轴承
- FAG
- BSB045100-T轴承
- 45
- 100
- 20
- 推力角接触球轴承
