71920CE/P4A轴承

      我们不仅提供SKF 71920CE/P4A轴承,还提供SKF品牌的其他品牌产品,以及SKF 71920CE/P4A轴承的替换型号,万千种型号,任您选择。

型号:71920CE/P4A      品牌:SKF      内径:100      外径:140      厚度:20      系列:角接触球轴承, 精密, CE, contact angle 15°
【 手机版   71920CE/P4A轴承      点击量         更新日期:2021/12/28 】

电话:020-36026999      传真:020-36705678      服务热线:18924187999      邮箱:sales@gzbearing.cn

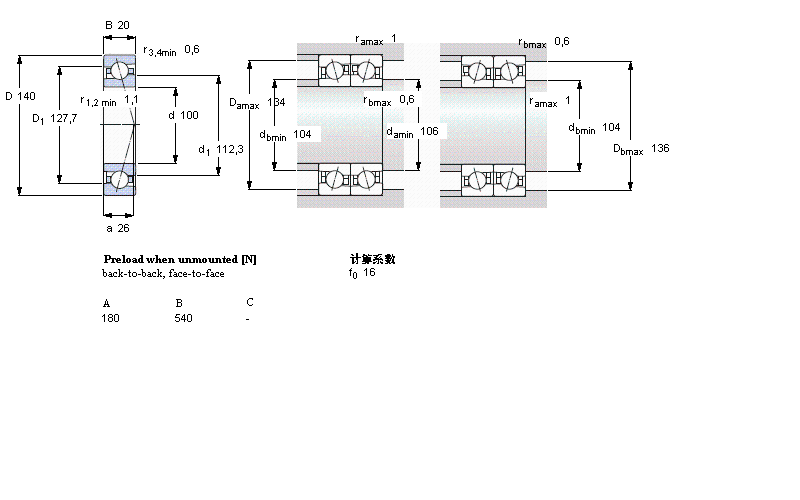

SKF 71920CE/P4A尺寸图纸


71920CE/P4A轴承基本参数


  角接触球轴承, 精密, CE, contact angle 15°
              公差 , see also text / text 718 (SEA) series
              预压, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series
              Recommended fits, shafts, housings
              轴和轴承座公差
  主要数据尺寸 基本负荷额定值 疲劳负荷限值 可达到的速度 体积 型号
    动态 静态   当润滑与   SKF SNFA
      油脂 滴油润滑   Listing of both SKF and SNFA designations means that
  d D B C C0 Pu
  mm kN kN r/min kg -
 1001402037,7291,1413000200000,7771920 CE/P4A-

角接触球轴承, 精密, CE, contact angle 15°

相同内径*外径*厚度—100*140*20
