我们不仅提供SKF BEAS012042-2Z轴承,还提供SKF品牌的其他品牌产品,以及SKF BEAS012042-2Z轴承的替换型号,万千种型号,任您选择。
型号:BEAS012042-2Z
品牌:SKF
内径:12
外径:42
厚度:25
系列:角接触推力球轴承 for screw drives, double direction
【更新日期:2016/8/3 电脑版 BEAS012042-2Z轴承】

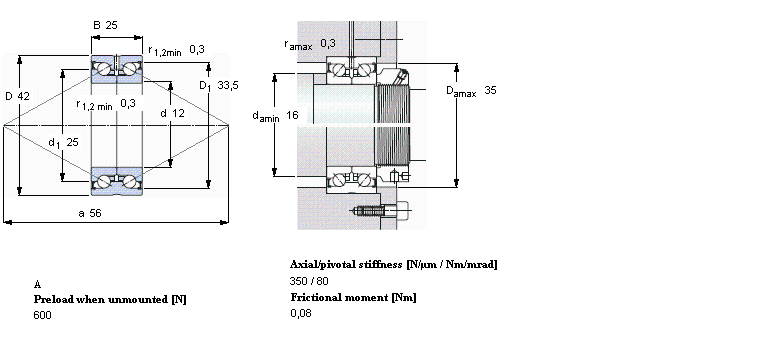

角接触推力球轴承 for screw drives, double direction | ||||||||||
公差, inner rings, outer rings, see also text | ||||||||||
Preload, see specific bearing, see also text | ||||||||||
Shaft fits, housing fits | ||||||||||
轴和轴承座公差 | ||||||||||
主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
动态 | 静态 | SKF | SNFA | |||||||
d | D | H | C | C0 | Pu | |||||
mm | kN | kN | r/min | kg | - | |||||
12 | 42 | 25 | 16,8 | 24,5 | 0,915 | 6700 | 0,20 | BEAS 012042-2Z | BEAS 12/42/Z 7P60 |
